Premium Car Wash System Tool - KMRON KM-J1 Model Single Drum Combination

KMRON KM-J3 smart multi-drum combination premium cleaning equipment and integrated oil supply system

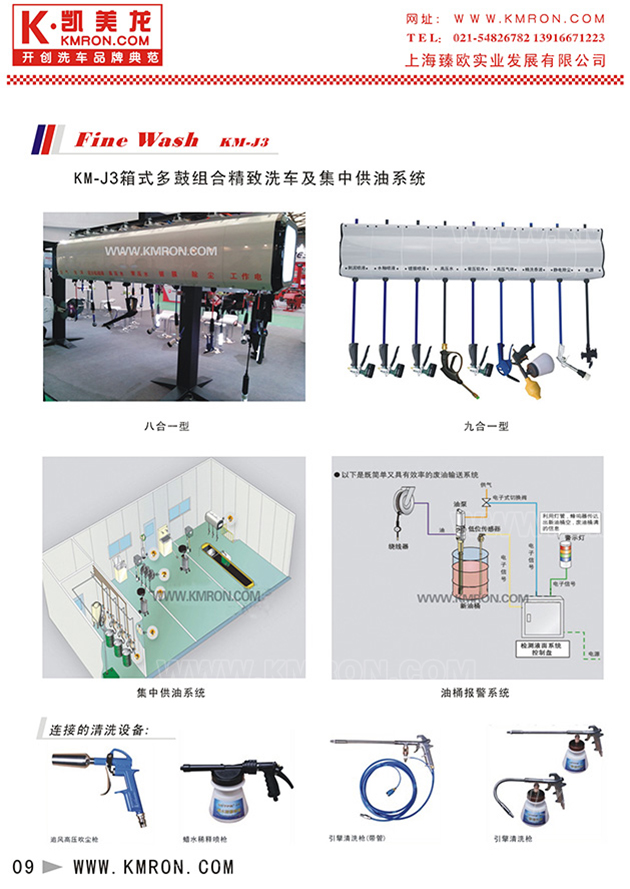

KM-J3 system diagram:

KM-J3 system description:

KMRON KM-J3 smart multi-drum combination premium cleaning equipment

(1) KMRON KM-J3 smart multi-drum combination premium car wash equipment set:
Compared to the common "five-in-one, four-in-one, three-in-one" box-type combination drums, customers can customize configurations based on their own pipeline and workstation needs. The number of combinations can be expanded to seven-in-one, eight-in-one, and nine-in-one, making operations more professional and intelligent.
The KMRON KM-J3 system integrates compressed air, power supply, 5kg normal-pressure clean water, foam wax, mud-loosening agent, ion film coating agent, high-pressure water, as well as oil, etc. Configurations can be customized to any number of groups according to workstation requirements, supporting up to nine-in-one combinations. It can also be customized with workstation photoelectric sensors, lighting display, car wash timer display, and other features for a higher degree of automation.

(2) Advantages of KMRON KM-J3 premium car wash equipment:

The KMRON KM-J3 premium car wash system features an intelligent safety system with car wash status display, integrated oil supply with circuit smart alarm, and more. It ensures workstation safety through intelligent monitoring and truly professional operation. For workshops that do not use reels, dragging pipelines on the ground is dangerous — they can be easily damaged by corrosive substances and pose risks to operators. This applies equally to car 4S stations, auto repair shops, premium car wash centers, and other facilities. High-end service centers use reel equipment and premium car wash systems to improve the working environment, enhance efficiency, and maintain professional standards. The smart KM-J3 system is clearly the preferred choice for high-end operations — professional, safe, and intelligent.

In short, the KMRON KM-J3 premium car wash equipment not only combines the KM-J2 features of safety, professionalism, effort-saving operation, convenience, cleanliness, but also adds intelligent operation and display. It can also be configured with an integrated oil supply system according to customer needs. The KMRON reel is a labor-saving long-distance utility transmission device that allows users to quickly access various utilities or tools, avoiding the clutter of pipelines and tools left on the ground, saving valuable working hours. Additional features include intelligent prompts and integrated oil supply systems.

(3) KM-J3 applicable locations: automobile 4S stations, auto detailing workstations, premium car wash workstations, factory assembly lines, etc.

(4) Personalized box combination drum smart display:

1. Personalized box combination drum smart display

Nine-in-one combination (photo)	Eight-in-one combination (photo)	Seven-in-one combination (photo)

Note: Customers can customize any combination of gas, electricity, oil, water, etc. according to their needs.

2. Washing tool description:

(1) Tornado high-pressure dust blower

A. Product usage: Specially designed for cleaning automotive leather, ceilings, velvet, rubber, plastic, glass, various crevices, furniture, or blankets.

B. Features: Delivers a professional interior cleaning result

C. Overview: The tornado blower is a high-pressure dust blower manufactured using aerodynamic principles to atomize and spray cleaning liquid. It is used for automotive interior surfaces including leather, velvet, rubber, plastic, glass, seat belts, various crevices, furniture, blankets, steering wheels, and instrument panels. Simply spray and wipe for a faster, more professional cleaning result.

D. Product advantages

(A) Powerful cleaning performance using bio-based formula. With just one spray and one wipe, it removes various stains from genuine leather and velvet seams.

(B) High efficiency, strong stain-removal capability, saving time and effort, and maximizing interior cleaning efficiency.

(C) Safe on velvet and all materials — will not cause damage. Most traditional interior cleaning agents use aerosol foam and brushes, which can easily cause harm to surfaces.

E. Precautions

Leather products come in many different types (genuine leather, synthetic leather, etc.) with various specifications such as color, texture, hardness, and softness.

(A) When cleaning leather, do not let the surface air-dry. Wipe and blow dry immediately, including the velvet interior.

(B) When cleaning the dashboard, do not spray liquid into air vents or electrical components.

(C) Important reminder: Use a dry towel and compressed air to thoroughly dry any appliances, front and passenger seat ceilings, or velvet surfaces.

(2) Fine cleaning foam gun

A. Product use: Essential for foam car washing

B. Features: This product is an excellent tool that makes car washing quick and easy

C. Use overview: Fill the container with car wash agent and connect it directly to the tap water pipe. A large amount of high-performance foam will be generated to cover your vehicle. Dust and sand particles are wrapped in the foam and will not scratch your car's paint.

(3) Overview of premium car wash hub use for water, electricity, and air:

Diagram of water, electricity, and air drum connection joints (as shown in the diagram):

Diagram of Water Drum Connection Joint (Figure)	Diagram of Electric Drum Connection Joint (Figure)	Diagram of Gas Drum Connection Joint (Figure)

A. Product usage: Professional tool for auto detailing shops

B. Features: Professional, convenient, and safe

C. Overview of use:

Water hub: mainly used for vehicle cleaning. After use, the hose retracts neatly into the reel, saving space. Hose length is 10m.

Electric hub: mainly used for powering electrical appliances (such as polishing machines and vacuum cleaners). The extended cord eliminates the need to access distant wall sockets, reducing the risk of electric shock from wet floors. After use, the cord retracts into the reel for a tidy workspace. Cord length is 10m.

Air hub: mainly used for blowing water out of crevices after washing. A car towel is first used to wipe the surface, then compressed air from the air gun removes residual water from gaps. Hose length is 10m.

(4) Self-flow water gun

A. Product usage: Vehicle washing

B. Features: 6-stage water flow regulation, suitable for different needs, leak-proof sealed joints

C. Overview: Six-stage water pressure regulation for both high and low pressure. Universal design fits inner-diameter 12-15mm water pipes. One-handed operation switch with leak-proof sealed joint design for high quality and durability.

(Note: Other tools such as car wash machines, air compressors, dehydrators, vacuum cleaners, etc. — please refer to the product usage description or the KMRON online store for details.)

(5) Smart box combination drum premium car wash cases:

II. KMRON KM-J3 integrated oil supply system

(1) Introduction to the oil supply system:

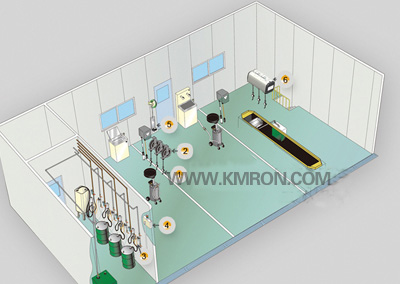

A. Integrated oil supply system

Basic configuration products

(1) Oil gun — connect to the end and dispense measured quantities of oil. Includes a meter-display oil gun and a pre-set high-performance oil gun.

(2) Oil hose reel — can be installed on walls or ceilings to deliver oil to the workstation via retractable oil hoses.

(3) Oil pump — installed inside the oil storage facility, powered by compressed air to transport oil products. Additional products:

(4) Oil drum alarm device — when the oil drum is nearly empty, an alarm reminder is triggered. It can also stop the oil pump to prevent air from entering the pipeline, eliminating the need to bleed air after oil drum replacement and making oil drum changes easier.

(5) Oil pan — wall-mounted to catch residual oil dripping from the oil gun. Operators do not need to worry about residual oil spills, keeping the workshop clean and tidy.

(6) SBB box — the oil hose reel can be configured inside the box, making the workshop layout organized and adding a professional appearance.

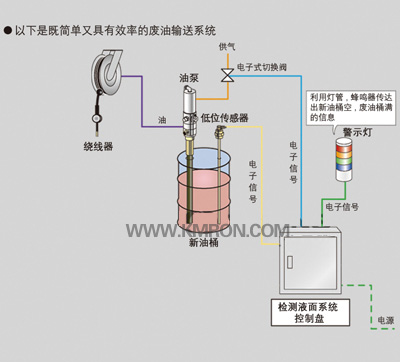

B. Oil drum alarm system:

(1) Alarm light — illuminates when the oil drum is nearly empty to alert operators.

(2) Solenoid valve — when the oil drum is nearly empty, the solenoid valve disconnects to stop the oil pump, preventing dry running and air from entering the pipeline.

(3) Liquid level sensor — detects the oil level inside the drum.

(4) Control cabinet — contains electronic components for control logic.
The system monitors and controls the delivery pressure and oil level. When the oil drum is nearly empty, the alarm activates and the delivery air pressure is cut off via the control valve to prevent the oil pump from running dry. This protects the oil pump and prevents air from entering the oil pipeline. After replacing the oil drum, there is no need to bleed the air again.

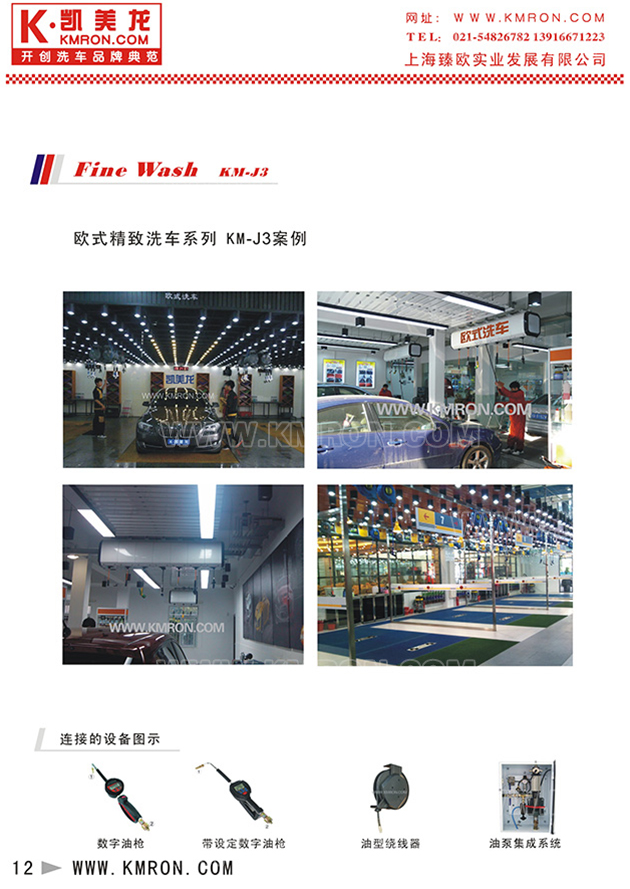

KM-J3 system cases:

Note: KMRON Professional Car Wash System supplier can provide customized Professional Car Wash System solutions tailored to the actual situation of your site.
