Introduction to System:
KMRON KM-L100SeriesFlatbedWheel WasherApplicable to professional washing engineering transport vehicles; Thoroughly solve the pollution of engineering vehicles on urban roads; Classic's model making and Professional's design enhance its Reliability, Durability, Performance, and Stability; Professional rust prevention treatment ensures the durability of equipment; System recycling uses water, while largelarge saves water resources. theCar Wash StationEspecially applicable to areas with few passing vehicles, where the Wheel Washer Installation site is small or where frequent movement of the Wheel Washer is required.
two,System Parameters:
Project Name |
System Parameters |
Model |
KM-L100 |
EquipmentSpecification |
4300(W)×2100(L)×400(H) |
Vehicle Parameters |
Vehicles with a width below 2800mm within 100T |
Sprinkler pressure |
3 ~ 5 Kg/㎠ |
electricity consumption |
380V × 3-phase × 50Hz |
power consumption |
12.5Kw/h |
Product weight |
2100Kg |
Applicable vehicles |
Various heavy duty engineering vehicles, garbage transport vehicles, etc |
water consumption |
10.800ℓ |
Operation method |
Through the Automatic Control System of Sensor |
sludge discharge |
Manual |
three, Product Features
1. The one body model of the sink is super easy to design:
KM-L100Wheel Washing Sink One Body Model is an ultra simple wheel washing machine that requires basic engineering for installation. The machine body and sink are made into one body, which has the advantages of installation and ultra easy movement. Applicable to few passing vehicles,Car Wash StationThe narrow car wash slot or wheel wash in the installation site should be frequently moved on-site.
2. Unique Automatic Water Circulation System:
The automatic circulation of self-cleaning wheel water maximizes the reduction of anti backwashing wheel hour replenishment water due to the water flow rate between the side water storage tank and the lower water storage tank of the Automatic Control Machine through the horizontal sensor and Feedback pump.
3. Reasonable spatial design:
The compact size optimizes the size of the Car Wash water storage tank, maximizing the space for water storage hours and wheel washing station installation.

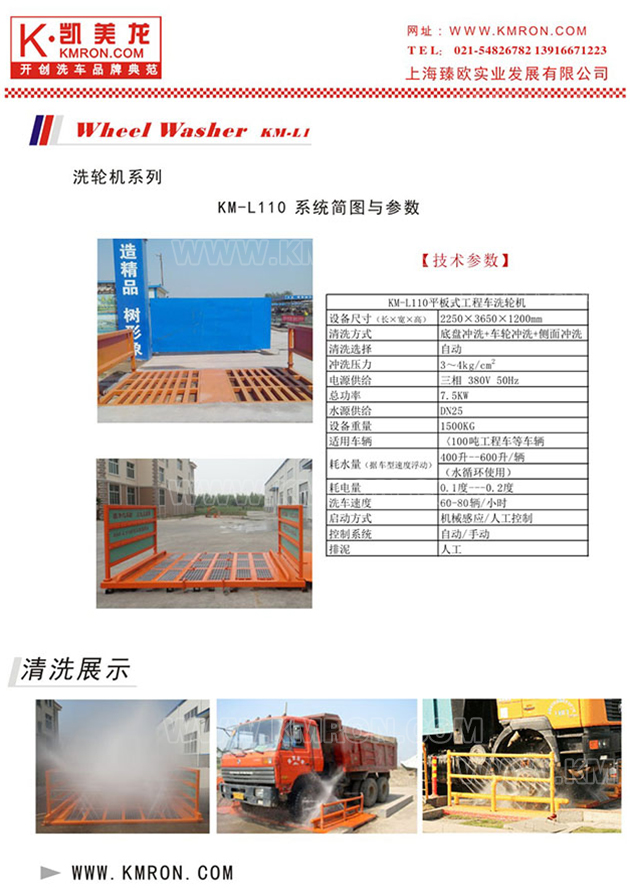

IV. System Diagram:
 |
