The KM-W4 Smart Full-Lift computerized automatic car wash machine is an upgraded fully automatic model based on the KM-W3. The overall frame structure features a split-body powder coating treatment, providing excellent rust prevention and a luxurious, elegant appearance. The installed full Smart-Lift system enables close-range thorough cleaning of the vehicle front and rear. This machine uses an advanced PLC computer control system — it is our company's fully automated computerized car wash machine tailored for touchless car wash investors who demand a high level of automation. This model features a compact footprint, affordable price, flexible functionality, one-touch operation for the entire wash process, full computer control, convenient usage, attractive exterior design, energy efficiency, eco-friendliness, long service life, low per-wash cost, low maintenance cost, excellent rust prevention, high reliability, and superior cleaning results.

The high-pressure system utilizes dual premium high-pressure pumps that deliver high pressure with low water volume. Combined with side high-pressure water curtain nozzles and the top Smart Full-Lift system, it creates a mesmerizing water dance effect. The 360-degree ultra-high-pressure water jets comprehensively clean every part of the vehicle. The automatic foam spray system evenly distributes car wash foam across the vehicle surface, effectively dissolving stubborn dirt and grime. The Smart Full-Lift system provides focused thorough cleaning of the easily soiled front and rear areas, while the automatic wax spray function leaves your vehicle looking as beautiful and glossy as new.

Since its market launch, the KM-W4 car wash machine has been highly popular among car wash investors and quickly became the top choice for franchise chain stores.

【Features】

※ Dual high-pressure pump station

※ Automatic detergent spray

※ Automatic chassis washing

※ Wide-angle automatic foam spray

※ Wireless remote control system

※ Chain drive transmission system

※ Low-pressure integrated control

※ Side high-pressure water curtain jet nozzles

※ Light-rail reciprocating turbine drive

※ Powder-coated galvanized steel enclosure

※ Automatic wax proportioning system

※ Smart Full-Lift System

※ PLC full computer control system

※ Optional wastewater treatment system available

※ Eco-friendly and water-saving

In summary, the KM-W4 Smart Full-Lift computerized automatic car wash machine: high automation level, flexible functionality, one-touch operation, convenient usage; fast washing speed, high efficiency — the preferred choice for investors seeking a premium deluxe touchless computerized car wash machine.

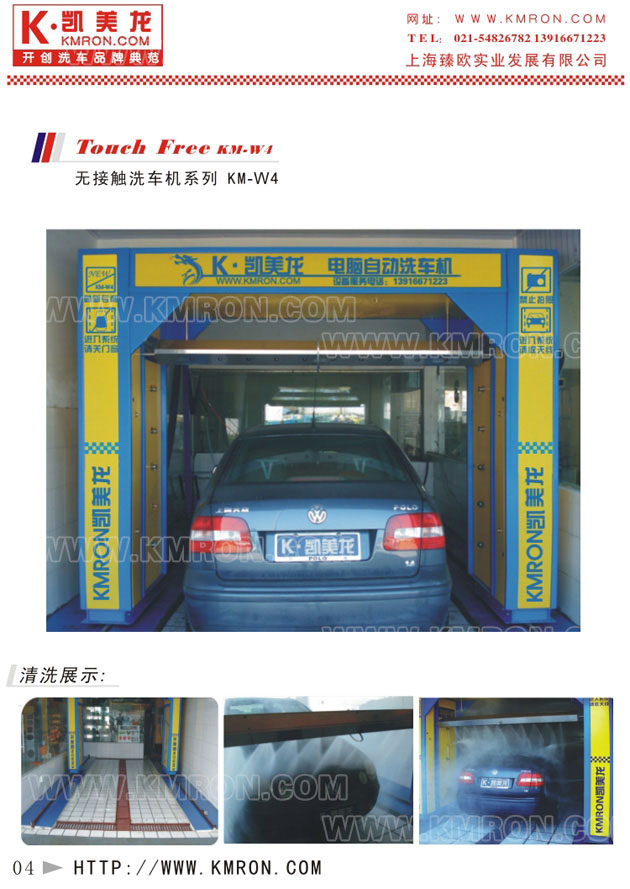

KM-W4 Touchless Car Wash Machine

【Technical Specifications】

Shanghai KMRON KM-W4 Smart Full-Lift Computerized Automatic Car Wash Machine
Applicable Vehicles	All types of sedans and vans
Wash Dimensions	5200mm(L) x 2200mm(W) x 2000mm(H)
Machine Dimensions	1000mm(L) x 3200mm(W) x 2500mm(H)
Installation Dimensions	7000mm(L) x 3300mm(W) x 2700mm(H)
Water Consumption	100-120L
Wash Time	100 seconds
Power Supply	AC380V three-phase five-wire 11.0KW
Control Voltage	Keypad 36V, wireless remote control 12V
Air Supply	0.8Mpa
Water Supply	120L/min
System Water Pressure	30-80Kg
Drying Configuration	None
Wash Method	Ground-rail reciprocating; panel and wireless remote dual-control system
Manufacturing Materials	Framework: Galvanized and rust resistant structural components. Panel: Galvanized sheet with spray coating. Frame and panel overall split-body spray coating treatment
Water Pump	High-pressure pump station (joint venture brand)
Electrical Configuration	Contactor, relay, transformer, motor protector, leakage protector, integrated circuit control system, comprehensive protection device, well-known brand PLC, etc.
Motor Reducer	Joint venture brand
Machine Configuration	Dual-drive travel, hydro-electric chain transmission, foam wide-angle sprinkler, American-style double-bar rotator, dual high-pressure power pump station, high-pressure underchassis washing, top oscillating nozzle, automatic foam spray, high-pressure 360-degree rotating water jet washing, wireless remote control, automatic wax, Smart Full-Lift system, PLC full computer control system

——————
