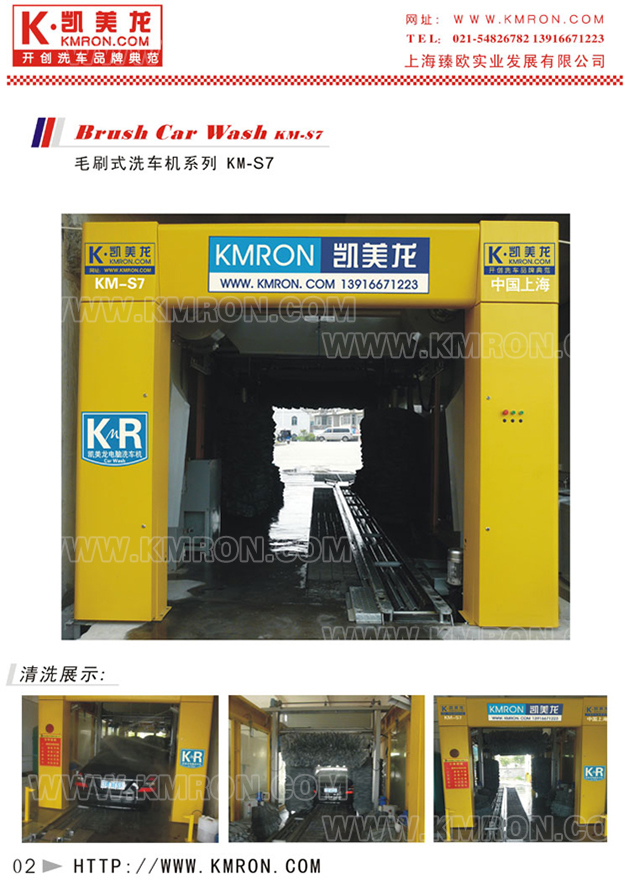

The KMRON KM-S7 tunnel continuous computerized automatic car wash machine is suitable for a series of operations including high-pressure water washing, car wash detergent application, automatic brush washing, automatic wax application, automatic drying, and polishing on various sedan and small van exterior surfaces. When the vehicle is transported into the car wash bay by the conveyor, the swinging high-pressure water jet first completely flushes away the small gravel and dust attached to the surface of the vehicle body. Then, high-efficiency washing liquid and multiple sets of premium car wash machine brushes are applied to the vehicle surface and wheel hubs for all-around wrap-around washing. The mobile vertical brush can independently move left and right to precisely clean the central license plate area with no blind spots, and can follow the vehicle to enhance the washing effect. After high-pressure drying, the vehicle surface looks as clean as new.

【Features】

※ Tunnel continuous car wash operation significantly improves car wash efficiency

※ Deluxe-style main frame, corrosion-resistant and rust-proof

※ Computer-controlled combined operations of washing, drying, waxing, and polishing in multiple modes

※ Ultra-high-pressure pump station with high-pressure water jet system for superior cleaning results

※ Automatic sensor water spray and automatic car wash detergent application

※ Soft brush washing, paint-safe

※ Unique malfunction detection system

※ Touch-screen control operation with user-friendly interface

※ Car wash counting function

※ Contour-following powerful drying, highly efficient and thorough

※ PLC full computer control system

※ High-precision photoelectric positioning

※ Optional Chassis and wheel cleaning

※ Optional wastewater treatment system available

※ Eco-friendly and water-saving

In summary, the KMRON KM-S7 tunnel-type computerized automatic car wash machine: continuous pipeline operation significantly improves car wash efficiency, luxurious and elegant appearance, high automation level, automatic brush cleaning — it elevates the shop grade, improves work efficiency, and reduces labor intensity. The KM-S7 tunnel-type computerized car wash machine has become the preferred choice for many high-end car wash venues due to its unique advantages.

Brush Car Wash MachineDescriptionKM-S7

【Technical Specifications】

Shanghai KMRON KM-S7 Modeltunnel-type7-Brush Computerized Car Wash Machine
Applicable Vehicles	All types of sedans and vans
Wash Dimensions	5200mm(L) x 2000mm(W) x 2000mm(H)
Machine Dimensions	11700mm(L) x 3600mm(W) x 3200mm(H)
Installation Dimensions	17000mm (L) x 4100mm (W) x 3400mm (H) Export requires turning, with 7m reserved
Water Consumption	Approx. 100L
Wash Time	Single washing and drying takes about 90 seconds per vehicle, while continuous car washing takes about 60 seconds per vehicle
Power Supply	AC380V three-phase four-wire 38.0KW
Air Supply	0.8Mpa
Water Supply	120L/min
Drying Configuration	Powerful contour drying system
Wash Method	Tunnel Continuous Brush Washing, Human Computer Interface
Safety Protection	Multiple electrical safety protections
High-pressure Pump	High-pressure pump station (joint venture brand)
Operation Mode	Computer automatic control
Electrical Configuration	Electrical components from renowned international manufacturers including Schneider Electric (France), Mitsubishi (Japan), Omron (Japan), Airtac (Taiwan), Banner (USA), and Turck (Germany);Contactors, relays, transformers, leakage protectors, inverters, photoelectric and proximity sensors, PLC, safety protection devices Computer fault alarm detection, automatic vehicle body sensing, photoelectric positioning
Machine Configuration	Top Brush: One set of mobile large side brushes, two sets of fixed large side brushes, two sets of small side brushes, two sets of powerful contour drying system, one set of full computer smart operation system Ground-rail reciprocating travel system water/electricity/gas transmission system Automatic detergent spray High-pressure Washing high-pressure pump station with automated proportioning system
