Project Name	System Parameters
Model	KM-L310Wheel Washer
EquipmentSpecification	1000(W)×5350(L)×2200(H)
Vehicle Parameters	Vehicles with a width below 2800mm within 100T
Sprinkler pressure	3 ~ 5 Kg/㎠
electricity consumption	380V × 3-phase × 50Hz
power consumption	15.5Kw/h
Product weight	4500Kg
Applicable vehicles	Various heavy duty engineering vehicles, garbage transport vehicles, etc. within 100T
water consumption	10.800ℓ
Operation method	Through the Automatic Control System of Sensor
sludge discharge	Automatic type through conveyor belt

Two, System Introduction:
KM-L3104 four axis roller type wheel washer, compared to KM-L300is single row roller type wheel washer, has a simpler foundation pit structure and more convenient operation; This product is mainly composed of a sewage pump, a fully automatic distribution box, a sludge discharge system, a double-sided side steering spray bar connected to the bottom spray hole of the machine body, and a stamping system. It is designed specifically for washing various engineering vehicle tires and Chassis. This equipment uses a convenient roller mechanism to drive the wheel to rotate, achieving the effect of thoroughly cleaning the wheel. EquipmentAutomatic completes the wheel Washing, Mud discharge work. Washing water can be recycled, and only a small amount of water needs to be replenished during working hours, thus saving a large amount of water resources. Specially applicable for vehicle washing in various construction sites, mining workshops, cement product factories, coal mines, and landfills.

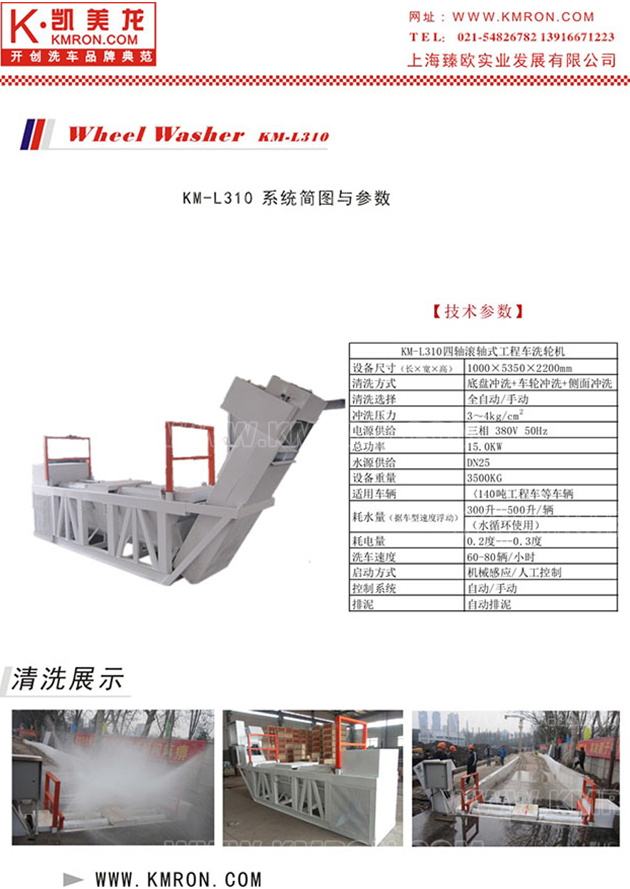

Three, System Diagram:

Km L - KMRON

4. Product Features:

The Chassis and tires of the Automatic Washing Engineering Vehicle completely eliminate road pollution

Automatic rotating wheel, achieving thorough washing

※ Automatic sludge discharge, manual subsidence operation strength

Washing water recycling, maximizing water resource conservation

The equipment occupies a smaller area, only one and a half of the KM-L300 model

※ Can adapt to work sites with large earthwork volume, easy and fast transition

Vehicle washingDescription: Roller type
